Item No.: | 6004 2RS |
---|---|
Payment : | T/T, PAYPAL, WESTERN UNION |
Product Orgin : | China |
Product Port : | Shanghai Port |
LeadTime : | Normally 7 - 10 days |
Product Weight : | 0.067kg |
High Quality Deep Groove Ball Bearings 6004 2RS
Dimension: 20 X 42 X 12 ( MM )
Standard: Z1/V1, Z2/V2, Z3/V3
Material: Chrome Steel GCR-15
Hardness: About 58 - 62 HRC
Dynamic Load: 9.95
Static Load: 5
Reference Speed: /
Limiting Speed: 11000 r/min
Instruction of Deep Groove Ball Bearing:
Deep groove ball bearing is the most rolling bearing. It can suffer from both axial and bidirectional radial load. It can be used in these occasions with the demand of high rotion, low noise, and low oscillation. Bearing with seal together with steel cover or rubber seal usually filled with lubricant in advance. the outside ring with stopping circle or flange, these will not only be easier for axial orientation, but also good for the installing of outside shell. The size of maximum loading bearing is just the same as standard bearing, while with backfill trough in the inside and outside, which can add the balls, and improve the maximum load at the same time.
Dawson can supply different types of deep groove ball bearings, wich can be used in different occasions.
The following is more part number of ball bearing 6000 series:
Bearing No. | d | D | B | W. KG |
6000 | 10 | 26 | 8 | 0.019 |
6001 | 12 | 28 | 8 | 0.023 |
6002 | 15 | 32 | 9 | 0.032 |
6003 | 17 | 35 | 10 | 0.039 |
6004 | 20 | 42 | 12 | 0.07 |
6005 | 25 | 47 | 12 | 0.079 |
6006 | 30 | 55 | 13 | 0.117 |
6007 | 35 | 62 | 14 | 0.156 |
6008 | 40 | 68 | 15 | 0.194 |
6009 | 45 | 75 | 16 | 0.246 |
6010 | 50 | 80 | 16 | 0.264 |
6011 | 55 | 90 | 18 | 0.384 |
6012 | 60 | 95 | 18 | 0.418 |
6013 | 65 | 100 | 18 | 0.438 |
6014 | 70 | 110 | 20 | 0.607 |
6015 | 75 | 115 | 20 | 0.645 |
6016 | 80 | 125 | 22 | 0.855 |
6017 | 85 | 130 | 22 | 0.895 |
6018 | 90 | 140 | 24 | 1.17 |
6019 | 95 | 145 | 24 | 0.567 |
6020 | 100 | 150 | 24 | 1.26 |
6021 | 105 | 160 | 26 | 1.6 |
6022 | 110 | 170 | 28 | 1.97 |
6024 | 120 | 180 | 28 | 2.67 |
6026 | 130 | 200 | 33 | 3.92 |
6028 | 140 | 210 | 33 | 4.15 |
6030 | 150 | 225 | 35 | 4.84 |
6032 | 160 | 240 | 38 | 5.89 |
6034 | 170 | 260 | 42 | 7.92 |
6036 | 180 | 280 | 46 | 10.3 |
6038 | 190 | 290 | 46 | 10.8 |
6040 | 200 | 310 | 51 | 13.9 |
6044 | 220 | 340 | 56 | 18.4 |
6048 | 240 | 360 | 56 | 19.6 |
6052 | 260 | 400 | 65 | 29.3 |
6056 | 280 | 420 | 65 | 31 |
6060 | 300 | 460 | 74 | 43.8 |
6064 | 320 | 480 | 74 | 46.1 |
6068 | 340 | 520 | 82 | 61.8 |
6072 | 360 | 540 | 82 | 64.7 |
6076 | 380 | 560 | 82 | 67.5 |
6080 | 400 | 600 | 90 | 87.6 |
6084 | 420 | 620 | 90 | 91.1 |
6088 | 440 | 650 | 94 | 106 |
6092 | 460 | 680 | 100 | 123 |
6096 | 480 | 700 | 100 | 127 |

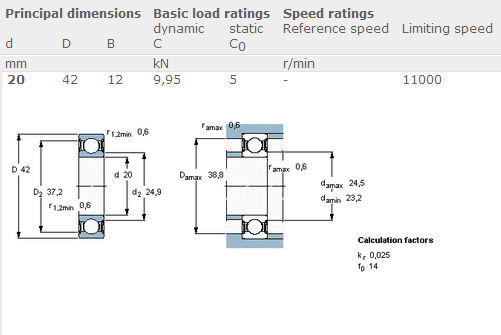

Drawings of Deep Groove Ball Bearings 6004 2RS:
