Home >> Ball Bearing >> Deep Groove Ball Bearing>>Deep Groove Ball Bearings 6002 ZZ Chrome Steel
Best Deep Groove Ball Bearings Online
Deep Groove Ball Bearings 6002 ZZ Chrome Steel
Item No.: 6002 ZZ
Payment : T/T, PAYPAL, WESTERN UNION
Product Orgin : China
Product Port : Shanghai Port
LeadTime : Normally 7 - 10 days
Product Weight : 0.0299kg
Contact Now
Description

Deep Groove Ball Bearings 6002 ZZ Chrome Steel:

Dimension: 12 X 28 X 8 ( MM )

Standard: Z1/V1, Z2/V2, Z3/V3

Material: Chrome Steel GCR-15

Hardness: About 58 - 62 HRC

Dynamic Load: 5.85

Static Load: 2.85

Reference Speed: 50000

Limiting Speed: 26000

Instruction of Deep Groove Ball Bearing:

Deep groove ball bearing is the most rolling bearing. It can suffer from both axial and bidirectional radial load. It can be used in these occasions with the demand of high rotion, low noise, and low oscillation. Bearing with seal together with steel cover or rubber seal usually filled with lubricant in advance. the outside ring with stopping circle or flange, these will not only be easier for axial orientation, but also good for the installing of outside shell. The size of maximum loading bearing is just the same as standard bearing, while with backfill trough in the inside and outside, which can add the balls, and improve the maximum load at the same time.

Dawson can supply different types of deep groove ball bearings, wich can be used in different occasions.

The following is more part number of ball bearing 6000 series:

Bearing No. d D B W. KG
6000 10 26 8 0.019
6001 12 28 8 0.023
6002 15 32 9 0.032
6003 17 35 10 0.039
6004 20 42 12 0.07
6005 25 47 12 0.079
6006 30 55 13 0.117
6007 35 62 14 0.156
6008 40 68 15 0.194
6009 45 75 16 0.246
6010 50 80 16 0.264
6011 55 90 18 0.384
6012 60 95 18 0.418
6013 65 100 18 0.438
6014 70 110 20 0.607
6015 75 115 20 0.645
6016 80 125 22 0.855
6017 85 130 22 0.895
6018 90 140 24 1.17
6019 95 145 24 0.567
6020 100 150 24 1.26
6021 105 160 26 1.6
6022 110 170 28 1.97
6024 120 180 28 2.67
6026 130 200 33 3.92
6028 140 210 33 4.15
6030 150 225 35 4.84
6032 160 240 38 5.89
6034 170 260 42 7.92
6036 180 280 46 10.3
6038 190 290 46 10.8
6040 200 310 51 13.9
6044 220 340 56 18.4
6048 240 360 56 19.6
6052 260 400 65 29.3
6056 280 420 65 31
6060 300 460 74 43.8
6064 320 480 74 46.1
6068 340 520 82 61.8
6072 360 540 82 64.7
6076 380 560 82 67.5
6080 400 600 90 87.6
6084 420 620 90 91.1
6088 440 650 94 106
6092 460 680 100 123
6096 480 700 100 127

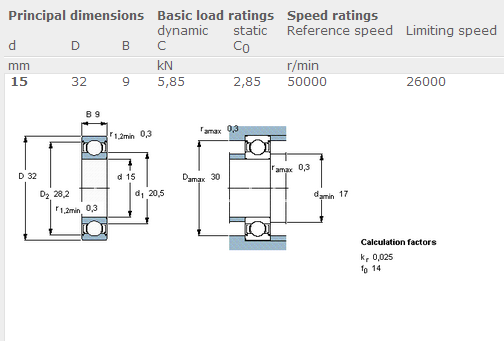

Drawings of Deep Groove Ball Bearings 6002 ZZ:

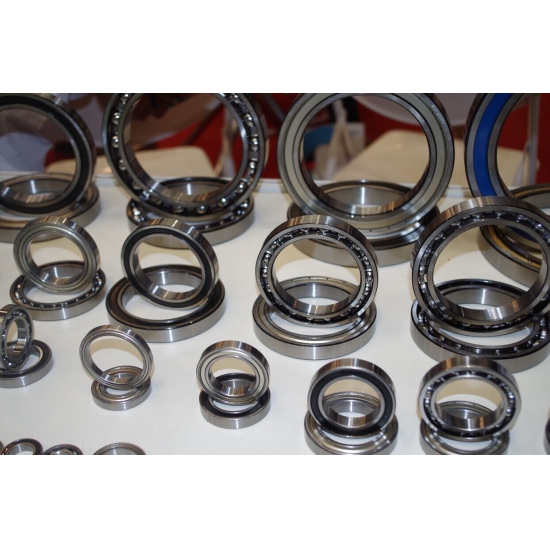

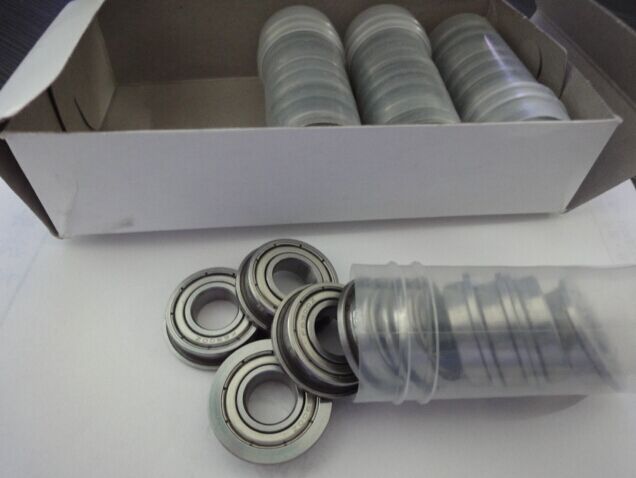

The following is more pictures of our deep groove ball bearing:
