E Cage Double Row Spherical Roller Bearings 21313 EK

Bearing Package: Single Box

In Spherical Roller Bearings we can supply in: CC Cage, CA cage, E cage, EAE4 Cage, MB cage.

 1.Internal Structure and Retainer Material Variation

 C:         Symmetrical roller, Stamped Steel retainer

 CA:      Symmetrical roller, one-pice brass cage

 CTN1:  Symmetrical roller,  nylon cage

  E:         Third generation design. improved stress distribution; offer much longer service life than normal designs

 Q:         Bronze cage

 MB:      Symmetrical roller,Two-pice brass cage

 EM:      Symmetrical roller, Special alloy Integral cage.

 2.External form change

 K:        Tapered bore bearing,taper is 1:12

 K30:    Tapered bore bearing,taper is 1:30

 N:        A snap ring groove on the outer ring

 W33:   There are three lubrication groove and three lubrication holes in the outer ring

3. Ring high-temperature tempering

 S0: Work temperature up to 150 degrees Celsius.

 S1: Work temperature up to 200 degrees Celsius.

 S2: Work temperature up to 250 degrees Celsius.

 S3: Work temperature up to 300 degrees Celsius.

 S4: Work temperature up to 350 degrees Celsius.

4. Clearance

C0:Norminal clearance,omitted in destination

C2:Less than Norminal clearance

C3:Larger clearance than C0

C4: Larger clearance than C3

C5: Larger clearance than C3

C9:Special Clearance

 C     Features a stamped steel cage and stengthened symmetric roller.As a second generation design,these bearing designs are optimized to offer considerably higher load ratings than conventional designs for a broad range of application and long service life.

 CA  The alternative design of the second generation,these bearings feature a precision-machined brass cage and strengthened symmetric roller and are equivalent to C design in load rating.They are used to exchange with C design,particularly for large sizes.

E type is SKF Explorer Design, except E type cage, we also can supply EAE4 cage of Japanese standard.

Instruction of Spherical Roller Bearings:

Spherical roller bearing is made up of inside ring of double rollaway nest, outside ring of spherical rollaway, double row spherical balls containers and center rib. It also has the function of self-align, because of the coincide between the center of circular arcs in the outside rollaway nest and the center of bearing. What's more, it also can repair the error while in installing bearing into house, or the obliquity of outside ring and inside ring caused by the bending of axletree. This kind of bearings can endure much more radial load and a certain amount of axial load.

Dawson can offer you various kind of double row spherical roller bearings, which can be used in different situations, such as 20000CC, 20000E, 20000EAE4, 20000CA, 20000MB and so on.

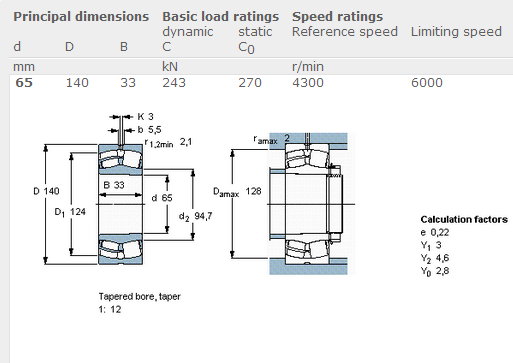

The following is the drawings of Spherical Roller Bearings 21313 EK:

  The following are more photos of our Spherical Roller Bearing of E type cage:

 Welcome to send us the inquiry!
