Home >> Roller Bearing >> Spherical Roller Bearing>>China Spherical Roller Bearing 23088 CA/W33
Durable Spherical Roller Bearings
China Spherical Roller Bearing 23088 CA/W33
Item No.: 23088 CA/W33
Product Orgin : China
Product Port : Shanghai Port
LeadTime : Normally 7 - 10 Days
Product Weight : 180kg
Contact Now
Description

China Spherical Roller Bearing 23088 CA/W33

Part Number

23088

Type

Roller spherical bearing

Seal Type

Open

Inner Dia.

440mm

Outer Dia.

650mm

Thickness

157mm

Mass

180KG

Hardness

58-63HRC

Material

Chrome steel

Cage

Brass

Precision

P0 P6 P5

Clearance

C1 C2 CN C3 C4 C5

Dynamic Load Rating

3102.5KN

Static Load Rating

5567.5KN

Grease Limiting Speed

600rpm

Oil Limiting Speed

800rpm

Brand

As customer’s requirement.

Minimum order quantity

 1 pc







Spherical roller bearing with high load capacity design of type EA, type C, type CD, type CA. The design, type EA, type C, type CD for stamping holder, CA type copper alloy machined cage. The EA type bearing is with high load capacity, low torque.

Spherical roller bearings



230  series

23022 23024 23026 23028 23030 23032 23034 23036 23038 23040 23044 23048 23052 23056 23060 23064 23068 23072 23076 23080 23084 23088 23092 23096



240 series

24024 24026 24028 24030 24032 24034 24036 24038 24040 24044 24048 24052 24056 24060 24064 24068 24072



232  series

23218 23220 23222 23224 23226 23228 23230 23232 23234 23236 23238 23240 23244 23248 23252 23256 23260 23264 23280 23284 23296



222  series

22208 22209 22210 22211 22212 22213 22214 22215 22216 22217 22218 22219 22220 22222 22224 22226 22228 22230 22232 22234 22236 22238 22240 22244 22248 22252 22256 22260



223series

22308 22309 22310 22311 22312 22313 22314 22315 22316 22317 22318 22319 22320 22322 22324 22326 22328 22330 22332 22334 22336 22338 22340 22344 22348 22352 22356 22372 22380



231 series

23121 23122 23124 23126 23128 23130 23132 23134 23136 23138 23140 23144 23148 23152 23156 23160 23164 23168 23172 23176  23180 23184 23188 23192 23196  23936 23940 23948 23960 23972 23976 23996



241 series

24122 24124 24126 24128 24130 24132 24134 24136 24138  2414



Instruction of Spherical Roller Bearing:

Spherical roller bearing is made up of inside ring of double rollaway nest, outside ring of spherical rollaway, double row spherical balls containers and center rib. It also has the function of self-align, because of the coincide between the center of circular arcs in the outside rollaway nest and the center of bearing. What's more, it also can repair the error while in installing bearing into house, or the obliquity of outside ring and inside ring caused by the bending of axletree. This kind of bearings can endure much more radial load and a certain amount of axial load.

Dawson can offer you various kind of double row spherical roller bearings, which can be used in different situations, such as 20000CC, 20000E, 20000EAE4, 20000CA, 20000MB and so on.

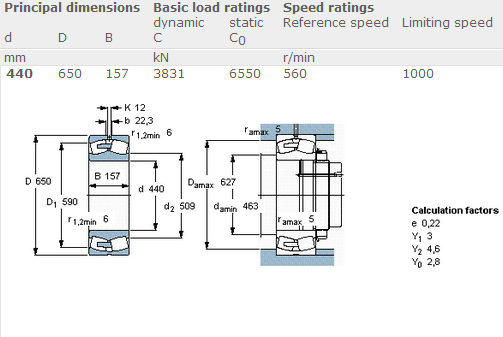

The following is the drawings of Spherical Roller Bearing 23088 CA/W33:



23088 CA

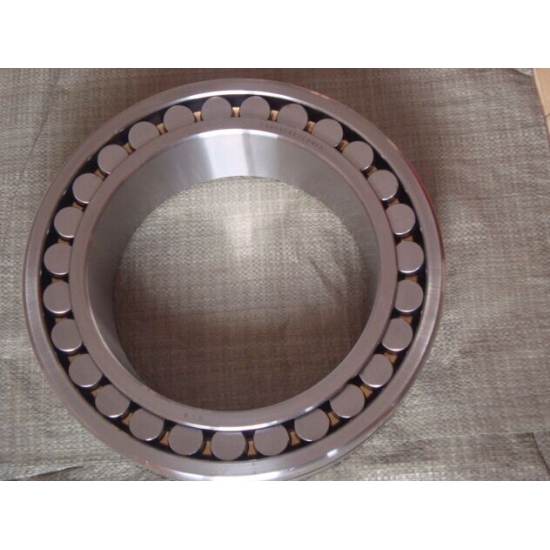

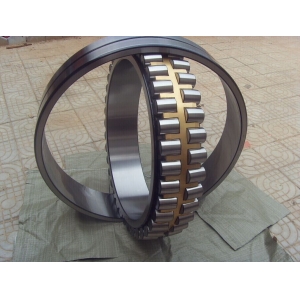

  The following are more photos of our Spherical Roller Bearing of CA type cage:
