Home >> Sliding Bearing >> Pillow Block Bearing>>Pillow Block Bearing UCP209, SF45TF
0127

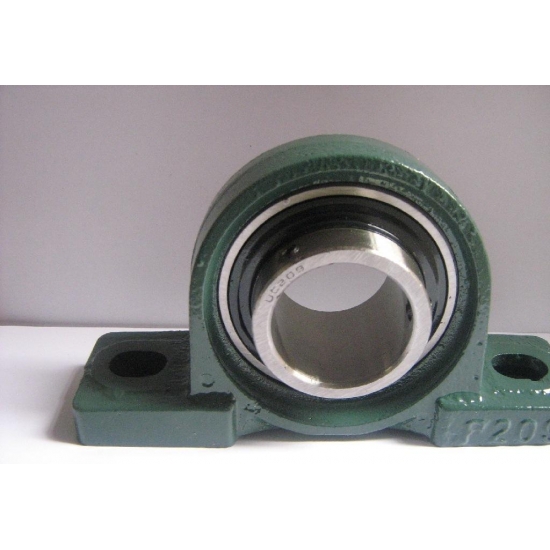

Pillow Block Bearing UCP209, SF45TF
Item No.: 127
Payment : 30% T/T deposit, 70% balance against the copy
Product Orgin : Cihinaadxzzzzzzzzzzzzz
Product Port : Shanghai, Shenzhen
LeadTime : Depends the order qty
Product Weight : 2.2kg
Contact Now
Description

Pillow Block Bearing UCP209, SF45TF

Size: 54×45×190×146×106×49.2

Old Part Number: Z90500

DAWSON brand part number: UCP209

SKF part number: SY45TF

FAG part number: P56209


Description of Pillow Block Bearings:

Insert ball bearing(insert bearing with housing/Pillow Block Bearing) is the rolling bearing and bearing seat together a bearing unit. Most particularly the spherical bearing are made spherical outer diameter, and the imported bearing with spherical inner hole to install together, variety structure, good versatility and interchangeability. At the same time, this kind of bearing in design also has a certain adjustable mind, easy to install, has a dual structure of sealing device, can work under harsh environment. Bearing is usually is made of casting forming.Commonly used with vertical(P),(F),the square convex square stands(FS),circular convex(FC),diamond(FL),ring(C),slider(T),etc.

Pillow Block Bearing is the outer diameter of the spherical outer ring with double sealing device, widen the inner ring of deep groove ball bearings, outer spherical ball bearing and all kinds of structure of casting bearing combination or stamping steel housing is set-contained bearing spherical ball bearing. Arrange ushering bearing structure is compact, light weight, small volume, has a good automatic self-aligning performance, to allow self-aligning Angle up to + 10.With the corresponding size is equipped with split compared bearing self-aligning ball bearings, have larger bearing capacity and high speed limits. Related to host a low machining accuracy, bearing inner hole and shaft are usually clearance fit, can be directly with the top silk, eccentric sleeve or set set of fastening and optical axis at any position, convenient installation, especially suitable for the supporting shaft, long axis, stiffness used small deformation of the axis of the host.


More Part Number of UCF Pillow Block bearings:


del No. shaft dia. Dimensions(mm) bolt bearing housing weight
d H L J A N N1 H1 H0 S B
in mm kg
UCP201S   12 30.2 125 96 32 12 16 13 57 12 27 M10 UC201S P203S 0.6
UCP201-8S 1/2 12.7 UC201-8S
UC202S   15 UC202S
UCP202-10S 5/8 15.875 UC202-10S
UCP203S   17 UC203S
UCP203-11S 11/16 17.463 UC203-11S
UCP201   12 30.2 127 96 37 13 19 14 60.7 12.7 31 M10 UC201 P203  0.65
UCP201-8 3/4   UC201-8S
UCP202-10S   15 UC202
UCP202-10 5/8   UC202-10S
UCP203   17 UC203
UCP203-11  11/16   UC203-11
UCP204-12 3/4   33.3 127 96 38 13 16 14 65 12.7 31 M10 UC204-12 P204 0.65
UCP204   20 UC204-12
UCP205-14 7/8   36.5 140 105 44 13 19 15 71 14.3 34 M10 UC205-14 P205 0.72
UCP205-15 15/16   UC205-15
UCP205   25 UC205
UCP205-16 1   UC205-16
UCP206-18 1-1/8   42.9 160 121 48 14 19 16 83 15.9 38.1 M12 UC206-18 1.15
UCP206   30 UC206-18
UCP206-19 1-3/16   UC206-19 P206
UCP206-20 1-1/4   U206-20
UCP207-20 1-1/4   47.6 167 126 52 15 19 17 93 17.5 42.9 M12 UC207-20 P207 1.53
UCP207-21 1-5/16   UC207-21
UCP207-22 1-3/8   UC207-22
UCP207   35 UC207
UCP207-23 1-7/16   UC207-23
UCP208-24 1-1/2   49.2 180 136 54 15 21 18 100 19 49.2 M12 UC208-24 P208 1.88
UCP208-25 1-9/16   UC208-25
UCP208   40 UC208
UCP209-26 1-5/8   54 189 146 57 15 21 20 108 19 49.2 M12 UC209-26 P209 2.1
UCP209-27 1-11/16   UC209-27
UCP209-28 1-3/4   UC209-28
UCP209   45 UC209
UCP210-30 1-7/8   57.2 204 159 60 19 22 21 114 19 51.6 M16 U210-30 P210 2.5
UCP210 1-15/16   UC210
UCP210-31   50 UC210-31


Series of Pillow Block Bearing we can supply:

UCP, UCF, UCT, UCFL, UCFC, UCPA, UCFA, UCPH, UFL, SBPP, SBPF, SBPFS, SBPFL.


The following is the drawings of UCP pillow block bearings:

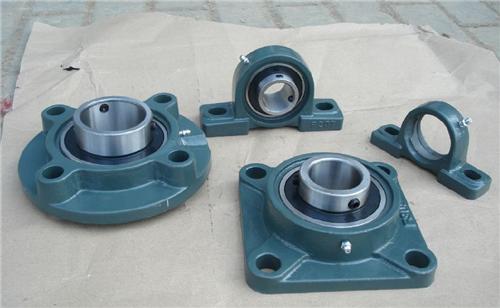

More picutres of our UCP Pillow Block Bearings:



Welcome to send us the inquiry!
