Home >> Roller Bearing >> Spherical Roller Bearing>>Spherical Roller Bearings 23092 CA/W33 Europe Quality
Europe Quality Spherical Roller Bearings
Spherical Roller Bearings 23092 CA/W33 Europe Quality
Item No.: 23092 CA/W33
Payment : T/T, PAYPAL, WESTERN UNION
Product Orgin : China
Product Port : Shanghai Port
LeadTime : Normally 7 - 10 Days
Product Weight : 205kg
Contact Now
Description

Spherical Roller Bearings 23092 CA/W33 Europe Quality

Part Number

23092

Type

Roller spherical bearing

Seal Type

Open

Inner Dia.

460 mm

Outer Dia.

680 mm

Thickness

163 mm

Mass

205KG

Hardness

58-63HRC

Material

Chrome steel

Cage

Brass

Precision

P0 P6 P5

Clearance

C1 C2 CN C3 C4 C5

Dynamic Load Rating

3315KN

Static Load Rating

5907.5KN

Grease Limiting Speed

520rpm

Oil Limiting Speed

700rpm

Brand

As customer’s requirement.

Minimum order quantity

 1 pc

Bearing Package: Single Wooden Box



In Spherical Roller Bearings we can supply in: CC Cage, CA cage, E cage, EAE4 Cage, MB cage.

Model specifications

Boundary Dimension Mass Basic Load Ratings(KN) Basic Speed Bearing Numbers SJG&SJG
(mm) (KG)
d D B rmin approx Cr Cor Approx Speed Limit Speed Cylindrical Bore Tapered Bore
r/min r/min
360 540 134 5 110 2750 4800 950 1200 23072 CC/W33 23072 CCK/W33
360 540 180 5 145 3550 6550 700 1000 24072 CC/W33 24072 CCK30/W33
360 600 192 5 220 4300 6950 750 1000 23172 CC/W33 23172 CCK/W33
360 600 243 5 280 5600 9300 560 800 24172 ECCJ/W 24172 ECCK30J/W33
360 650 170 6 255 4300 6200 630 850 22272 CA/W33 22272 CAK/W33
360 650 232 6 335 5400 8300 530 750 23272 CA/W33 23272 CAK/W33
380 520 106 4 69 1960 3800 1100 1200 23976 CC/W33 23976 CCK/W33
380 560 135 5 115 2900 5000 900 1200 23076 CC/W33 23076 CCK/W33
380 560 180 5 150 3600 6800 670 850 24076 CC/W33 24076 CCK30/W33
380 620 194 5 230 4400 7100 560 1000 23176 CA/W33 23176 CAK/W33
380 620 243 5 300 5700 9800 460 850 24176 ECA/W33 24176 ECAK30/W33
380 680 240 6 375 5850 9150 500 750 23276 CA/W33 23276 CAK/W33





Instruction of Spherical Roller Bearings:

Spherical roller bearing is made up of inside ring of double rollaway nest, outside ring of spherical rollaway, double row spherical balls containers and center rib. It also has the function of self-align, because of the coincide between the center of circular arcs in the outside rollaway nest and the center of bearing. What's more, it also can repair the error while in installing bearing into house, or the obliquity of outside ring and inside ring caused by the bending of axletree. This kind of bearings can endure much more radial load and a certain amount of axial load.

Dawson can offer you various kind of double row spherical roller bearings, which can be used in different situations, such as 20000CC, 20000E, 20000EAE4, 20000CA, 20000MB and so on.



The following is the drawings of Spherical Roller Bearing 23092 CA/W33:

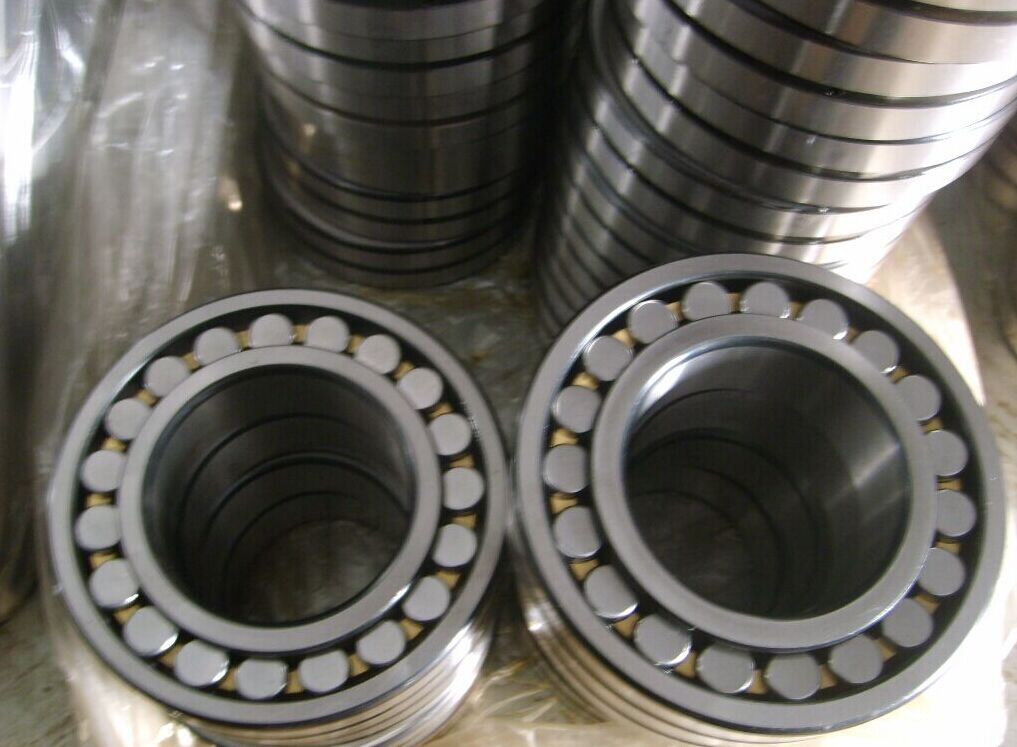

  The following are more photos of our Spherical Roller Bearing of CA type cage:
